VT-T40E – 4T 2 POST BASED LIFT WITH H FRAME
Symmetric
Description
Technical Data
cad Drawing
Description

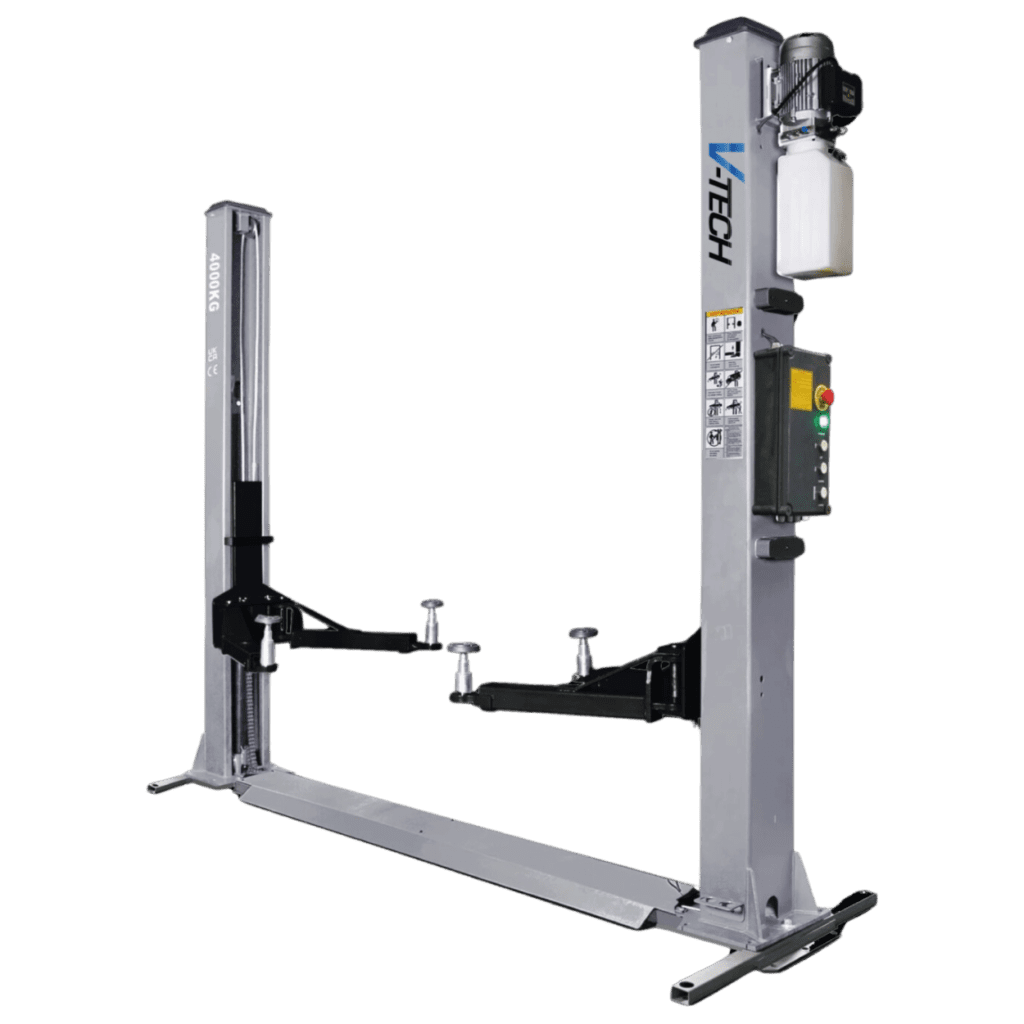

VT-T40E 4 Tonne 2 Post Lift
Our 4 Tonne 2 Post lift comes with a base frame, ideal for a substantially level but poor quality floor. These base frames give strength and structure to the installation.
The T40E range come in either single or 3 phase and come complete with 4 x 80mm lift pad extensions and with 2 (VT-T40E/C) or 3 (VT-T40E/B) stage arms.
Technical Data
Capacity Lifting Height
4 Tonne
Lifting Height
1910mm (75 1/5 ”)
Min Height
110mm (4 3/10 ”)
Max Car Width
2616mm (103 “)
Power Supply
220V 1PH 50/60Hz 2.2KW
220/380V 3PH 50/60Hz 2.2KW
Shipping information
Loading QTY: 30 Units/20’ CTNR
2940*455*750mm (615.5 kg/units)
cad Drawing
